CNC Turning Center

Model:

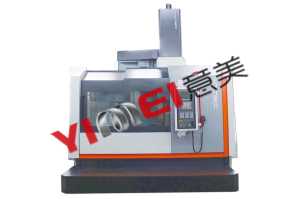

CK5116G Description of CNC turning center The CNC vertical turning center is suitable for large work piece in batch processing. Its precision grade reaches to IT6. As a kind of newly developed product, this CNC turning center has high performance, high reliability and high efficiency.

Features of CNC turning center

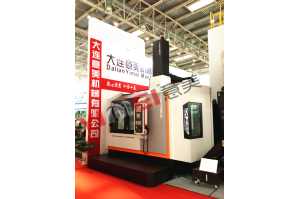

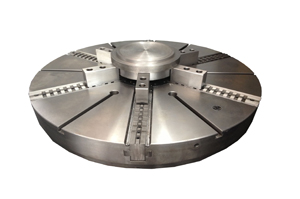

1. Automatic hydraulic chuck with 1400mm diameter is the most successive of all CIMT. This vertical turning center is presented in Beijing international exhibition for the first time.
2. As a kind of high-speed type product, the maximum rotator speed of its work table is up to 315r/min.
3. The X axis adopts grating full closed-loop, and its positioning accuracy reached to 0.01mm.

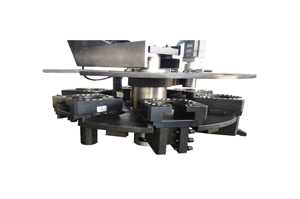

4. The CNC turning center has six turning tools in automatic changing (with ATC tool magazines), and the square ram is much more suitable for deep hole machining.
5. Our vertical turning center has bright painting appearance and high quality. The one door design can save more area.

Parameters of CNC turning center

CK5116G CNC turning center	Unit	CK5116G
Work table diameter	mm	1400
Max. turning diameter	mm	1600
Max. machining height	mm	1200
Max. work piece weight	t.	8
Work table rotary speed while turning	rpm	315
Max. torque of worktable	Nm	32000
Sectional dimension of ram	mm	200×200
Ram travel	mm	1000
Fast speed of tool post	mm	6000
Max. turning force	N	28
Crossbeam fast moving speed	mm	400
Chip conveyor power	KW	0.38
Water pump power	KW	0.55
Cooling refrigerator power	W	4200
Numbers of turning tools in magazine		6
Positioning accuracy	sec	X=0.01, Z=0.03
Repeatability positioning accuracy	sec	X=0.007, Z=0.015
Overall size of machine tool	mm	4800×3200×3800
Weight of machine tool (about)	t.	13.8
CNC system		Fanuc 0i-TD/Siemens 828D
