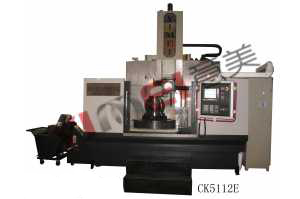

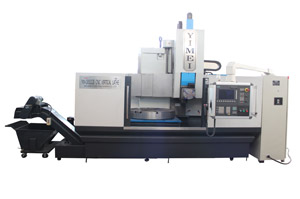

CK5112E CNC Vertical Lathe
Features
1. The professional type vertical lathe machine has professional design, mature technology, and reliable quality and square ram with four station electric tool carrier.
2. As a supplier of CNC vertical lathe, our company offers worktable that is waterproofed and it has turning, cutting and threading function under constant linear speed.
3. The surface of crossbeam and T-type ram guide way are quenched by supersonic frequency (>HRC50). Its sliding surface is equipped with wearable band, which is more lasting and durable. Square ram’s material is QT600.
4. This professional type vertical lathe machine adopts Siemens 828d system (Fanuc OI-TD system is optional). The servo motor and the drive are original manufactory products.
5. The independent electric cabinet is equipped with air conditioning.
6. The crossbeam is protected by white steel and it has independent hydraulic station. The automatic lubricating pump supplies oil to lubrication parts automatically.
7. This professional type vertical lathe machine is equipped with four mechanical gears for transmission, variable frequency motor with stepless speed, constant power and large torque.
8. The high-precision gear box (grade 6) and spiral bevel gear (grade 6) have low noise and high accurate rotation.
9. After artificial thermal aging treatment, all the castings are gray cast iron (square ram ductile iron).
10. All of the electric components, bearings, key parts, and hydraulic parts are from international famous brand manufacturers with completed configuration.
11. The following spare parts of professional type vertical lathe machine are optional: German Mecano button station, cross flow static pressure guide, semi-closed protection, chip conveyor, trolley, oil temperature cooling refrigerator and hydraulic station etc.
12. As a supplier of CNC vertical lathe, our company offers you the products with best quality.
Parameters of Professional Type Vertical Lathe Machine
Term
|
Unit
|
CK5112E
|
Max. turning diameter
|
mm
|
1250
|
Worktable diameter
|
mm
|
1000
|
Max. height of work piece
|
mm
|
1000/1200
|
Max. weight of work piece
|
t.
|
3.2
|
Rotating range of worktable
|
r/min
|
0.5-250
|
Mechanical stage number of variable speed
|
Four gears +stepless
|
Max. cutting force of tool post
|
KN
|
25000/30000
|
Max. torque of worktable
|
KN
|
25000
|
Horizontal travel of tool post
|
mm
|
850
|
Vertical travel of tool post
|
mm
|
700
|
Tool carrier station form
|
Electric tool carrier with four station/square tool carrier
|
Crossbeam travel
|
mm
|
650/850
|
Tool post fast moving speed
|
mm/min
|
6000
|
Crossbeam moving speed
|
mm/min
|
440
|
Sectional dimension of tool bar
|
mm
|
32×32/40×40
|
Main electric motor power
|
KW
|
30
|
Positioning accuracy
|
mm
|
0.03
|
Repositioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
IT7
|
Weight of machine tool
|
t.
|
7.8/8.8
|
