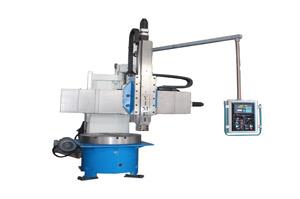

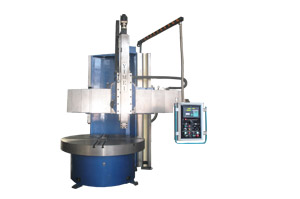

Single Column Vertical Lathe

Single Column Vertical Lathe

Description:

Single column vertical lathe has good quality, safe and reliable performance. As a single column lathe machine manufacturer, our company stands in the leading position in China’s lathe market. This machine is applied in a variety of small ring unit, shell, flanges and other parts of the outler cylinder, circular conical surface and end surface turning processing, etc.

Features of Single Column Vertical Lathe

1. The beam guide and ram guide are processed by supersonic frequency induction hardening. (HRC≥50). Being treated with sticking plastic, the sliding surface has strong wear resistance and high precision. Because of that, its maintenance circle can be lasted as long as more than ten years.
2. With the adoption of resin sand mold casting process, the vertical lathe castings of single column vertical lathe have superior quality and durability.
3. The high precision rat gear is used for positioning by five-angle tool carrier, which has stronger rigidity compared with traditional five piece positioning plate.
4. To make the vertical lathe adapt to the overloaded power cutting, make the device convenient and improve the maximum torque output, we adopt the electric rotary valve and grade 16 machinery variable speeds.
5. The electrics of Single column vertical lathe use Japan Omron PLC control and its electric components utilize the components with ultra-high quality.
6. The two axis display standard configuration and high precision gear grinding gear have the characters of low noise and stable operation.
7. These configurations are optional: rolling working platform, Germany Mecano button station, heightening lathe and prolonging ram and square ram etc.
8. It concludes the types of
VC5112E
VC5116E
VC5120E
VC5123E
VC5126E

As a single column lathe machine manufacturer, our company offers you the best service.

Typical of C5112E Single Column Vertical Lathe specification:


Term
Unit VC5112E VC5116E VC5120E VC5123E VC5126E
Max. turning diameter of vertical tool post mm 1250 1600 2000 2300 2600
Max. turning diameter off side tool post mm 1100 1400 1800 2000 2400
Worktable diameter mm 1000 1400 1800 2000 2250
Max. height of work piece mm 1000/1200 1200/1400/1650 1250/1400 1400/1600/2000 1600/2000
Max. weight of work piece t 3.2 5 8 8 10/16
Rotating Rang of worktable r/min 6.3-200 5-160 3.2-100 3.2-100 2-63
Variable speed stage number of worktable

16 16 16 16 16
Feeding range of vertical and side tool post mm/min 0.1-500 0.1-500 0.1-500 0.1-500 0.1-500
Feeding stage number of vertical and side tool post

stepless stepless stepless stepless stepless
Max. cutting force of vertical tool post KN 20 25 25 30 30
Max. cutting force of side tool post KN 20 20 20 20 20

Max. total cutting force
KN 35 40 40 40 40
Max. torque of worktable KN.m 17.5 25 32 32 45
Horizontal travel of vertical tool post mm 830 1000 1210 1400 1500
Vertical travel of vertical tool post mm 700/800 800/1000 800/1000 800/1000/1300 800/1000/1300
Horizontal travel of side tool post mm 630 630 630 630 630
Vertical travel of side tool post mm 900 900 900 900 900
Crossbeam travel mm 650 650/850/1100 850 1050/1250 1250/1650
Vertical and side Tool post rapid moving speed mm/min 3000 3000 3000 3000 3000
Max. swivel angle of vertical tool post ±30 ±30 ±30 ±30 ±30
Crossbeam lifting speed mm/min 440 440 440 440 440
Sectional dimension of tool bar mm 32*32/40*50 32*32/40*50 32*32/40*50 32*32/40*50 32*32/40*50
Feeding electric motor power KW 2.2 2.2 2.2 2.2 2.2
Main electric motor power KW 22 30 30 30 37
Overall size(L*W*H) mm 2360*2277*3403 2660*2660*3698 3135*3037*3910 3310*3245*4010 3675*3355*5100
Weight of machine tool T 8 12.8/14/14.8 17 18/19/21 26/28
