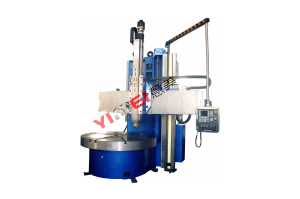

CK5123E CNC Vertical Lathe

CK5123E CNC Vertical Lathe

Features of China CNC Vertical Lathe

1. This Vertical lathe with single column has characters like high precision, stability and rigidity. It is used to turn tools such as hard alloy, high speed steel machine ferrous metal, non-ferrous metal and part of non-metal parts. Our Chinese CNC vertical lathe machine tool is mainly used for the rough and will manage to finish the machining process of complicated surface of all kind of tools. It also can do many different kinds of processing as cutting grooving, cutting off and counter boring, etc.
2. The agent structure of this Chinese CNC vertical lathe is single column. The guide way of its table is slide with dynamical pressure. The Feed drive of Vertical Lathe with Single Column is fulfilled by the ball–screw shaft and an AC servo motor.
3. Our Chinese CNC vertical lathe is equipped with Siemens 808 system. Employers can operate and program it easily. Besides that, they can choose other CNC systems according to their needs. This Siemens 808 system of vertical lathe with single column possesses many abilities, such as linear interpolation, arc interpolation, spindle ability, tool ability assistant ability, clearance compensation, self-diagnosis ability, program storage, high speed, high precision and high reliability of alarms, program of graphic counter, the ability of graphic technique cycle, etc

Parameters of China CNC Vertical Lathe

Term
Unit
CK5123E
Max. turning diameter
mm
2300
Worktable diameter
mm
2000
Max. height of work piece
mm
1400/1600
Max. weight work piece
t.
8
Rotating range of worktable
r/min
0.5-100
Mechanical stage number of variable speed 16 steps
Max. cutting force of tool post
N
32000
Max. torque of worktable
KN
40000
Horizontal travel of tool post
mm
1400
Vertical travel of tool post
mm
1000/800
Tool carrier station form
Electric tool carrier with four station/square tool carrier
Crossbeam travel
mm
1050/1250
Tool post fast moving speed
mm
6000
Crossbeam moving speed
mm/min
440
Sectional dimension of tool bar
mm
32×32/40×50
Main electric motor power
KW
45/55
Positioning accuracy
mm
0.03
Repositioning accuracy
mm
0.015
Machining accuracy
IT7
Weight of machine tool
t.
17/18
