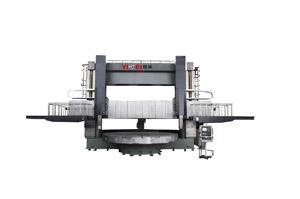

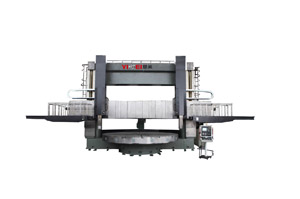

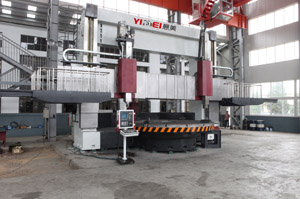

Description of Vertical Lathe Machine with Double Column

Our high rigidity cast iron base and column have perfect stability and anti seismic performance. The vertical structure of CNC vertical turning lathe makes setting more convenient and takes smaller space. With the adoption of water and oil separation structure, the cold water can keep clean longer.

Advantages of Vertical Lathe Machine with Double Column

1. Vertical lathe low voltage electrical adopt the ABB international brand and the electric components utilize the components with ultra-high quality , CNC equipment using Siemens 828D(Fanuc 0i-TD by option),servo motor and servo driver all utilize Siemens products;
2. The high precision grinding gear of CNC vertical turning lathe has low noise and stable operation.
3. Our vertical lathe machine with double column is equipped with complete accessories configuration.
4. Our advanced technology of CNC vertical turning lathe integrates mechanic, electric and hydraulic technologies as a whole unit.
5. Siemens 828D or 840D CNC system Fanuc OI-TD system and 100 % manual operation function.
6. The left tool holder of vertical lathe machine with double column is conventional and the right is CNC. You can also choose CNC tool carriers on both sides according to your needs.
7. The guide way of worktable uses constant current oil supplied by constant motor: hydraulic oil adopts refrigerator constant coolant which effectively reduces the variant of worktable and ensures precision machining of worktable.
8. The lubrication pump of CNC vertical turning lathe can lubricate each sliding lubrication parts automatically.
9. It has high precision screw lead and imported bearing support.
10. It carries out JB/T9934.2-1999CNC vertical lathe technical condition.
11. Gearbox uses high precision grinding gear.

Parameters of Vertical Lathe Machine with Double Column

Term Unit CK5263
Max. turning diameter mm 6300
Worktable diameter mm 4500/5000/5700
Max. height of work piece mm 3150/4000
Max. weight of workpiece t. 50/100/150
Max. cutting force of right tool post Kn 50/80/120
Max. cutting force of left tool post Kn 40/70/100
Max. total cutting force Kn 150
Max. torque of worktable Kn 100/150/250
Stage number of variable speed of worktable Two gears
Variable speed range of worktable r/min 0.5-40
Feeding stage number AV servo stepless
Feeding range mm/min 0.1-2000
Horizontal travel of tool post mm 3450
Vertical travel of tool post mm 1600/2000
Crossbeam moving speed mm/min 380
Tool post rapid moving speed mm/min 4000
Max. swivel angle of worktable +/-30
Positioning accuracy mm 0.03
Repeatability positioning accuracy mm 0.015
Machining accuracy IT7
Main electric motor power Kw DC90/110
Overall size mm 8100×13080×8520
Weight of worktable t. 118/127/178
