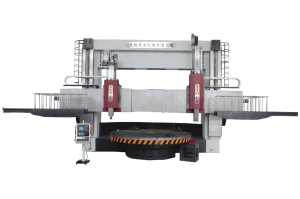

CXK800 CNC Vertical Lathe

Description of Vertical Lathe Turning Center

The main feature of the China vertical turning center is its vertical lathe spindle in vertical position. To guarantee the convenience of work piece setting and installation, the work table is in horizontal plane. With the support of guide way, the work table has strong rigidity and stable cutting process. it has two knife rests, so the machine can alter cutter quickly.

Features of Vertical Lathe Turning Center

1. Being developed and researched by our company independently, our China vertical turning center has the characters of multifunction, high precision and high efficiency.
2. Being equipped with three axes, our vertical lathe turning center can perform turning, milling, boring and grinding except bottom surface for one time clamping. Our machining center can process more complex work piece if being equipped with five axes and double pendulum head.
3. The main shaft of worktable adopts high-precision double row cylindrical roller bearing for centering in radial direction. Besides that, the China vertical turning center adopts large ball thrust bearing for loading in axial direction. Its worktable has the functions of precision indexing, turning and milling feedings.
4. The positioning accuracy of vertical lathe turning center is 0.01mm with grating closed-loop feedback control function.
5. All of the castings are made of HT 300 gray cast iron (ram is made of ductile iron) and is treated with artificial heat aging, high-quality processing and improved assembly process. All of the electrical parts, bearings, key parts, and hydraulic parts of the China vertical turning center are from the international famous brand manufacturers.
6. All of the castings of vertical lathe turning center are treated by artificial thermal aging treatment.

Parameters of China Vertical Turning Center

Vertical turning and milling center	unit	CXK800
Worktable diameter	mm	6000
Max. turning diameter	mm	8000
Max. machining height	mm	4000
Max. weight of work piece	t.	150
Main motor power	KW	110
Worktable speed while turning	r/min	20
Worktable speed while milling (C axis)	r/min	0-2
Max. torque of worktable	Kn.m	250
Sectional dimension of ram	mm	320×320
Ram stroke (Z axis)	mm	2000
Rapid moving speed of tool post (X axis Z axis)	mm/min	6000
Feeding speed of tool post	mm/min	0.1-2000
Max turning force (L/R)	KN	70/80
Milling axis rotary speed	r/m	5-2000
Milling axis torque	nm	1600
Milling axis power	KW	37
Taper hole of milling axis	iso	BT50
Crossbeam stroke/grade	mm	3500
Crossbeam rapid moving speed	mm/min	350
No. of milling cutter in magazine		24
Auxiliary turning tool magazine		6
Positioning accuracy of X,Z,Y axis	mm	0.01
Repeatability positioning accuracy of X,Y,Z axis	mm	0.001
Positioning accuracy of C axis	mm	±8”
Repeatability positioning accuracy of C axis	mm	±5”
CNC system	Siemens 828DSL
