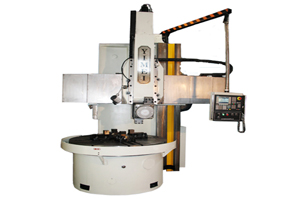

CK5112E CNC Vertical Lathe

CK5112E CNC Vertical Lathe

Description ofEconomic Type Vertical Lathe

Our vertical lathe adopts resin sand casting process and artificial heat processing, which make the vertical lathe more durable.

Features of Economic Type Vertical Lathe

1. This Small type CNC vertical lathe integrates suspended button station, electric cabinet and lathe together.
2. The crossbeam and T Ram (square ram is optional) is quenched and stuck with wearable band.
3. Standard configuration of economic type vertical lathe includes 16 grade mechanical transmission and five station tool carrier (square tool carrier is optional).
4. Siemens 808 system (other systems are optional)
5. Closed protection for crossbeam and auto lubrication for each lubricated parts.
6. Our economic type vertical lathe carries out JB/T9934.2-1999 CNC vertical lathe technical condition and JB/T9934.1-1999 CNC vertical lathe precision inspection.
7. Optional functions for the Small Type CNC Vertical Lathe : variable frequency stepless speed, electric tool holder and heightened bed, etc.

Parameters

Term
Unit
CK5112E
Max. turning diameter of worktable
mm
1250
Worktable diameter
mm
1000
Max. height of work piece
mm
1000/1200
Max. weight of work piece
t.
3.2
Rotating range of worktable
r/min
6.3-200
Mechanical stage number of variable speed

16
Max. cutting force of vertical tool post
KN
30 square ram/25 electric tool carrier
Max. torque of worktable
KN
17.5
Horizontal travel of vertical tool post
mm
850
Vertical travel of vertical tool post
mm
650
Tool station carrier form
Square tool carrier/electric tool carrier with 5 station
Crossbeam travel
mm
650/850
Feeding speed of tool post
mm/min
0.1-500
Tool post rapid moving speed
mm/min
6000
Crossbeam lifting speed
mm/min
440
Sectional dimension of tool bar
mm
40×40/32×32
Main electric motor power
KW
22
Positioning accuracy

0.03
Repeatability positioning accuracy

0.015
Machining accuracy
IT7
Machine weight
T
8
