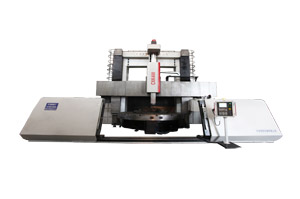

CXK500 CNC Vertical Lathe

CXK500 CNC Vertical Lathe

Description of China Vertical Lathe Compound Center

With the characters of advanced technology, multi-function, high precision and high efficiency, our vertical turning and milling center is widely used in military project, aerospace, shipbuilding, nuclear power and railway.

Features of China Vertical Lathe Compound Center

1. CXK series of vertical turning and milling center can perform turning, milling, boring, drilling and grinding with three axes except bottom surface for one clamping time. If being equipped with five axes, the series can process more work piece with double pendulum head.
2. With the adoption of thermal symmetric construction, the main basic components and the main transmission of China vertical lathe compound center have high stability.
3. The main shaft of worktable adopts high-precise double row cylindrical roller bearing for centering in radial direction. It also adopts large ball thrust bearing for loading in axial direction. The worktable has the functions of precision indexing, turning and milling feeding.
4. C axis positioning accuracy of China vertical lathe compound center is up to ±6”.
5. The machine tool of vertical turning and milling center is equipped with ATC auto magazine, six turning tools and 24 milling tools.
6. The beam has the functions of hierarchical positioning.
7. The control system adopts Siemens 840 DSL system. (other systems are optional)
8. All of the castings of China vertical lathe compound center are treated by artificial thermal aging treatment.

Parameters:

Vertical turning and milling center unit CXK500
Worktable diameter mm 4500
Max. turning diameter mm 5000
Max. machining height mm 3150
Max. weight of workpiece t 50
Main motor power KW 75
Worktable speed while turning r/min 50
Worktable speed while milling (C axis) r/min 0-2
Max. torque of worktable Nm 100
Sectional dimension of ram mm 280×280
Ram stroke (Z axis) mm 1600
Rapid moving speed of tool post (X axis Z axis) mm/min 6000
Feeding speed of tool post mm/min 0.1-2000
Max turning force (L/R) KN 35/40
Milling axis rotary speed r/mim 5-2000
Milling axis torque nm 800
Milling axis power KW 28
Taper hole of milling axis iso BT50
Crossbeam stroke/grade mm 2700
Crossbeam rapid moving speed mm/min 350
No. of milling cutter in magazine 24
Auxiliary turning tool magazine 6
Positioning accuracy of X,Z,Y axis mm 0.01
Repeatability positioning accuracy of X,Y,Z axis mm 0.005
Positioning accuracy of C axis mm ±6”
Repeatability positioning accuracy of C axis mm ±3”
CNC system Siemens 828DSL
