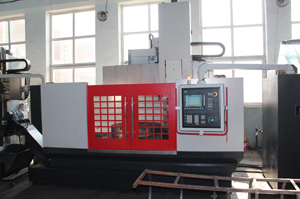

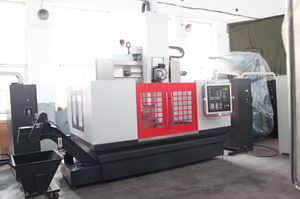

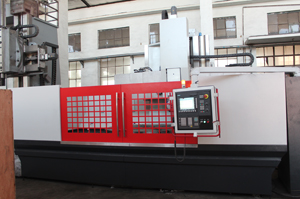

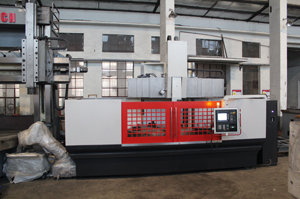

CK5120E CNC Vertical Lathe

Description ofChina CNC Lathe Machine with Single Column

This professional CNC lathe machine is equipped with independent electric cabinet (with refrigerator to cool it). It has the characters of big torque, high rigidity and heavy cutting. Compared with CNC horizontal lathe, this machine is more suitable for disc parts and it has higher machining precision and more complicate shape. Besides that, it has better performance in loading and clamping work pieces. Based on our deep study about machining technology, our China CNC lathe machine with single column can offer the best technology to meet users’ requirements.

Features ofProfessional CNC Lathe Machine

1. The square ram is equipped with four-station electric tool carrier. It has professional design, mature technology and reliable quality.
2. The worktable has waterproof function. It also can operate its turning and cutting thread function with constant linear speed.
3. The surface of crossbeam and T-type ram guide way are quenched by supersonic frequency (>HRC50). Its sliding surface is sticking with wearable band, which makes it more lasting and durable. Square ram’s material is QT600.
4. Our professional CNC lathe machine adopts Siemens 828 system (Fanuc OI-TD system is optional). Its servo motor and drive are original manufactory products.
5. The crossbeam of China CNC lathe machine with single column is protected by white steel. The lubricating pump can supply oil to all of the lubrication parts. It is equipped with independent hydraulic station.
6. The independent electric cabinet is equipped with air conditioning for refrigerating. It is not affected by vibration and is convenient to maintain.
7. This professional CNC lathe machine is equipped with four mechanical gears for transmission, variable frequency motor with stepless speed and large torque.
8. The high-precision gear box(grade 6) and spiral bevel gear (grade 6) has low noise and high accuracy rotation.
9. All of the electric components, bearings, key parts, and hydraulic parts of China CNC lathe machine with single column are from international famous brand manufacturers with completed configuration.
10. The following parts of professional CNC lathe machine are optional: German Mecano button station, cross flow static pressure guide, semi-closed protection, chip conveyor, trolley, oil temperature cooling refrigerator and hydraulic station etc.

ParametersofChina CNC Lathe Machine with Single Column

Term	Unit	CK5120E
Max. turning diameter	mm	2000
Worktable diameter	mm	1800
Max. height of workpiece	mm	1400/1600
Max. weight of work piece	t.	8
Rotating range of worktable	r/min	0.5-100
Mechanical stage number of variable speed	Four gears +stepless
Max. cutting force of tool post	KN	25000/30000
Max. torque of worktable	KN	32000
Horizontal travel of tool post	mm	1200
Vertical travel of tool post	mm	1000/800
Tool carrier station form	Electric tool carrier with four station/square tool carrier
Crossbeam travel	mm	1000/1250
Tool post fast moving speed	mm	6000
Crossbeam moving speed	mm/min	440
Sectional dimension of tool bar	mm	32×32/40×40
Main electric motor power	KW	45
Positioning accuracy	mm	0.03
Repositioning accuracy	mm	0.015
Machining accuracy	IT7
Weight of machine tool	t.	16/17
