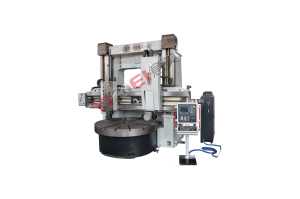

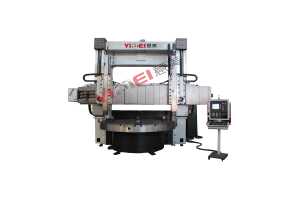

CK5225E CNC Vertical Lathe
Description:
The China CNC vertical lathe with double column is mainly used in the fine and rough process outer cylinder from the inside and outside, the cone surface, face, groove, boring and rotary surface made by black metals and some non-metallic parts. The right tool holder is CNC tool post and the left one is conventional type.
This series standard type vertical lathe can mill, bore, drill and tap according to user requirements. It also can finish the drilling, tapping, boring, milling plane and cylindrical plane and other processes on the end surface of the part.
Features:
1. The working platform of the China CNC vertical lathe with double column adopts four-step machinery + big power DC motor steeples speed control (AC frequency conversion can be selected) to realize rotary with large torque and own the turning function with constant line rate.
2. 100% manual operating function
3. Four gears mechanical transmission + large power DC motor stepless
4. Excellent casting of the Chinese CNC vertical lathe with double column (HT300) handled by heat aging.
5. The beam guide, ram guide and vertical column guide adopt automatic lubrication pump for automatic lubricating.
6. Nanjing process or THK high precision lead screw and imported bearing support.
7. The independent electric cabinet is equipped with air conditioning for refrigerating.
8. The independent hydraulic station of standard type vertical lathe is easy to adjust, repair and maintain.
9. The guide of the China CNC vertical lathe with double column can be divided into static pressure and purely static pressure. The bearing of dynamic and static pressure is 10 tons, and the purely static pressure adopts constant current for oil supply with 16-20 tons of bearing.
10. High-precision gear box (grade 6) and spiral bevel gear (grade 6) has low noise and high accuracy rotation function.
Parameters of CNC Vertical Lathe with Double Column
Term
|
Unit
|
CK5225
|
Max. turning diameter
|
mm
|
2500
|
Worktable diameter
|
mm
|
2250
|
Max. height of work piece
|
mm
|
1600/2000/2500
|
Max. weight of work piece
|
t.
|
16
|
Max. cutting force of right tool post
|
KN
|
35
|
Max. cutting force of left tool post
|
KN
|
30
|
Max. torque of worktable
|
KN
|
63
|
Stage number of variable speed of worktable
|
Four gears+stepless
|
Variable speed range of worktable
|
r/min
|
0.5-63
|
Feeding range
|
mm/min
|
0.1-2000
|
Horizontal travel of tool post
|
mm
|
1400
|
Vertical travel of tool post
|
mm
|
1000/1250
|
Crossbeam moving speed
|
mm/min
|
350
|
Tool post rapid moving speed
|
mm/min
|
6000
|
Max. swivel angle of worktable
|
。
|
±30
|
Positioning accuracy
|
mm
|
0.03
|
Repeatability positioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
IT7
|
Main electric motor power
|
KW
|
55
|
Guide way type of worktable
|
mm
|
static pressure
|
Weight of worktable
|
t.
|
32/35
|
