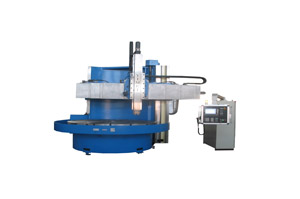

CK5126E CNC Vertical Lathe

CK5126E CNC Vertical Lathe

Description of China Single Column Vertical Lathe

As a CNC vertical lathe, this China single column vertical lathe is designed for turning tools such as hard alloy and high speed steel machine ferrous metal, non-ferrous metal, and part of non-metal parts. It has the characters of high precision, stability and rigidity. This machine tool is suitable for the rough and finish machining of all kinds of complicated surfaces. It can also finish such kinds of processing as cutting groove, cutting off and counter boring, etc. As a vertical turning lathe supplier, our company offers you the products with best quality.

Advantages of China Single Column Vertical Lathe

1. The ram is made of nodular cast iron. It has high extension strength, desirable abrasion resistance and strong rigidity for heavy cutting. You can get square ram of pentagonal turret according to your needs.
2. Our company uses manual scraping to deal with beam, slide seat, lathe bed and other important junction surfaces. Those scraped surfaces have high geometric accuracy and tight surface junction. Besides that, it also increased lubricant storage, reduce the friction coefficient between junction surfaces and enhance lathe’s service life.

Features of China Single Column Vertical Lathe

1. The surface of crossbeam and T-type ram guideway are quenched by supersonic frequency (>HRC50). The wearable band on the sliding surface makes it more lasting and more durable. Square ram is made of QT600.
2. White steel of China single column vertical lathe is used to protect crossbeam: all of the lubrication parts are lubricated by automatic lubricating pump, which has an independent hydraulic station.
3. as a vertical turning lathe supplier, our company offers the high-precision gear box (grade 6) and spiral bevel gear (grade 6) that have low noise and high accuracy rotation function.
4. The following functions of China single column vertical lathe are optional: German Mecano button station, cross flow static pressure guide, semi-closed protection, chip conveyor, trolley, oil temperature cooling refrigerator and hydraulic station etc.

P arameters of China Single Column Vertical Lathe

Term
Unit
CK5126E
Max. turning diameter
mm
2600
Worktable diameter
mm
2250
Max. height of work piece
mm
1600/2000
Max. weight of work piece
t.
10
Rotating range of worktable
r/min
0.5-80
Mechanical stage number of variable speed
Four gears +stepless
Max. cutting force of tool post
N
25000/32000
Max. torque of worktable
KN
45000
Horizontal travel of tool post
mm
1500
Vertical travel of tool post
mm
1000/800
Tool carrier station form
Electric tool carrier with four station/square tool carrier
Crossbeam travel
mm
1250/1650
Tool post fast moving speed
mm
6000
Crossbeam moving speed
mm/min
440
Sectional dimension of tool bar
mm
32×32/40×50
Main electric motor power
KW
45
Positioning accuracy
mm
0.03
Repositioning accuracy
mm
0.015
Machining accuracy
IT7
Weight of machine tool
t.
24/26
