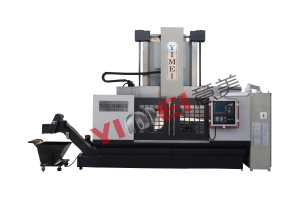

CKG125 High Speed CNC Vertical Lathe
Description of China Vertical Turning Lathe
CKG125 is suitable for cemented carbide tool and ceramic tool. It can be used to realizing rough, semi-finishing and finishing process for the ferrous metal, nonferrous metal and part of the non-metallic parts for internal and external cylindrical surface, conical surface sectional surface, grooving and threading.
As a CNC vertical lathe supplier, our company will offer you products with best quality.
Features of China Vertical Turning Lathe
1. High speed cutting: the maximum cutting speed can reach to 2000m/min. speed of the rest parts (horizontal and vertical) reach to 12m/min.
2. Main drive adopts AC spindle servo motor drive and two gears of Germany ZF transmission box. The high speed rotating work piece is balanced between static and dynamic. It has high precision gear, which can help achieve high transmission efficiency, low noise, high speed and reliable and smooth running.
3. The vertical lathe column of China vertical turning lathe is used for heat symmetrical structure, and it is installed in the workbench base.
4. Through the computer finite element calculation, the vertical lathe can resist vibration isolation effectively.
5. The vertical tool rest and ram feeding movement adopts linear rolling guide to do the smooth movement, which has high transmission efficiency and keep good accuracy.
6. The table and table base adopts the integral casting heat symmetrical structure, and the main shaft bearing is high precision double row short cylindrical roller bearing. The rotation of the machine tools has high precision, enough stiffness and thermal stability.
7. The lubrication parts of China vertical turning lathe can be lubricated automatically.
8. As a CNC vertical lathe supplier, our company can offer you chip removal device, semi-closed guard, machine tools, tool setting device in machine, milling and boring function, indexing table and feed function, grinding function, the left vertical tool rest and full closed loop control according to customers’ needs.
9. The low voltage electrical of vertical lathe adopts the ABB international brand and the electric components utilize the components with ultra-high quality. The CNC equipment of China Vertical Turning Lathe adopts Siemens 828D (Fanuc 0i-TD is optional). Besides that, the servo motor and the servo driver both adopts Siemens products.
10. The high-precision grinding gear is featured with low noise and stable operation.
Parameters:
Model
|
unit
|
CKG125
|
Worktable diameter
|
mm
|
1000
|
Max. turning diameter
|
mm
|
1250
|
Max. weight of work piece
|
t.
|
5
|
Max. height of work piece
|
mm
|
1000/1250
|
Variable speed stage of worktable
|
2 gears + stepless
|
Rotating range of worktable
|
r/min
|
2-400
|
Max. cutting force of worktable
|
KN
|
16
|
Max. torque of worktable
|
Nm
|
12500
|
Vertical tool post horizontal guide way pair
|
Sliding and rolling compound
|
Vertical tool post
|
T-type ram
|
Horizontal travel(X)
|
mm
|
-20----780
|
Vertical travel
|
mm
|
800/1000
|
Tool carrier type
|
Electric tool carrier with 4/5/6 station
|
Square
ram
|
Guide way pair
|
Sliding and rolling compound
|
Horizontal stroke(X)
|
mm
|
-50----870
|
Vertical stroke(Z)
|
mm
|
800/1000
|
Tool number in magazine
|
Pcs
|
4----12
|
CNC controller
|
SIMENS/FANUC
|
Main electric motor power
|
KW
|
AC45/55
|
Crossbeam stroke
|
mm
|
650/850
|
Crossbeam grading positioning number
|
|
5/6
|
Crossbeam grading positioning pitch
|
mm
|
150
|
Total power of machine
|
KW
|
45
|
Total weight of machine tool
|
t.
|
18
|
