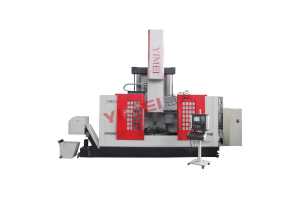

CXK160 CNC Vertical Lathe

CXK160 CNC Vertical Lathe

Description:

Being developed and researched by our company independently, our China Vertical turning center has the characters of multi function, high precision and high efficiency. Compared with traditional CNC vertical lathe, our CNC single column compound center has more functions like turning, milling, drilling, boring and grinding for one time clamping. It is widely used in military project, aerospace, shipbuilding, etc.

Features of CNC Single Column Compound Center

1. The main components and main transmission of China vertical turning center adopts thermal symmetrical structure which has high thermal stability.
2. High precision double row cylindrical roller is used for main shaft of worktable. Our worktable has the functions of precision indexing, turning and milling feedings.
3. The beam has hierarchical positioning function.
4. The ram of CNC single column compound center of China vertical turning center adopts high-precision ball screw transmission and the machine is setup ATC with 12-20 tool station.
5. It adopts Siemens 840DSL system (other systems are optional). Besides that, its servo motor and servo driver all adopt Siemens brand.
6. All of the castings of China vertical turning center are made of HT300 gray cast iron (the ram is made of ductile iron) which is treated with artificial heat aging, high-quality processing and improved assembly process. All of the electrical parts, bearings, key parts and hydraulic parts of CNC single column compound center were picked from the international famous brand manufacturers.

Parameters

No. Vertical turning and milling center Unit CXK160
1 Worktable diameter mm 1400
2 Max. Turning diameter mm 1600
3 Max. Working height mm 1400
4 Max.weight of workpiece t 8
5 Main motor KW 28
6 Worktable rotation while turning rpm 1-315
7 Worktable rotation while milling (C axis) rpm 0-3
8 Max. Torque of worktable nm 12500
9 Cutting section dimension of ram mm 280x280
10 Ram stroke(Z axis) mm 1000
11 Fast traverse speed of tool post (X. Z axis) mm/min 10000
12 Feeding speed of tool post(X. Z axis) mm/min 0.1-2000
13 Max.turning force kn 25
14 Rotation of milling axis rpm 5-2000
15 Torque of milling axis nm 600/800
16 Power of milling axis KW 18/28
17 Taper hole of milling axis iso BT50
18 Crossbeam stroke/grade mm 1000/6
19 Crossbeam fast traverse speed 6 mm/min 440
20 Tool nu0.01mber in ATC0.005 24
21 Auxiliary turning tool magazine position 6
22 Positioning accuracy of X.Z.Y axis mm 0.01
23 Repeatability positioning accuracy of X.Z.Y axis mm 0.005
24 Positioning accuracy of C axis sec +/-3"




26 CNC system Siemens828D sl
