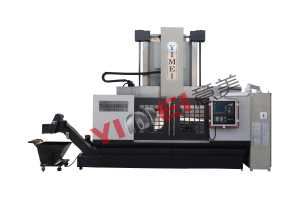

CKG160 High Speed CNC Vertical Lathe

Description:

This China vertical lathe machine has big power, high rigidity and excellent precision. It is suitable for fine and rough processing for casting irons, steels and ferrous metals. With the adoption of advanced vertical production technology, our machine integrates machine, electricity and hydraulic together, which shows the high precise cutting and high speed cutting. The maximum cutting speed reached to 2000m/min, and the movement of turret (vertical and horizontal) reaches to 12m/min.
The main ram rails adopt rolling composite rails. The ram of China vertical lathe machine is equipped with four- electric knife sets and the worktable chooses sliding rail ways to be their guide way. The gear box adopts imported ZF gear box, and the lathe has six degree accuracy. The Vertical Lathe Machine can be used to realizing rough, semi-finishing and finishing process for the ferrous metal, nonferrous metal and part of the non-metallic parts for internal and external cylindrical surface, conical surface sectional surface, grooving and threading.

Features:

1. The worktable of China vertical lathe machine is thermal symmetrical structure and has high rotation precision. It has large bearing capacity and small thermal deformation. Besides that, it is equipped with oil cooling device.
2. The main transmission is driven by AC spindle servo motor. The high speed rotation work pieces carries on static and dynamic balance and adopts high precision transmission gear with grinding process. It has the characters of low noise and smooth running under high speed rotation.
3. The feeding system of China vertical lathe machine is driven by servo motor with gapless transmission and grating closed-loop control which has high precision operation.
4. The columns are thermal symmetric construction with the help of FEM computation. The effective vibration isolation measures have high rigidity and high anti-vibration capability.
5. The CNC system of vertical lathe machine is Siemens or Fanuc. Other systems are optional.
6. The machine tool of China vertical lathe machine is equipped with chip conveyor device, semi-closed protection cover and water cooling.
7. As per customers’ requirements we can offer tool magazine, butted-knife installation, milling and boring function, worktable indexing and feeding function full closed-loop control, etc.
8. All the electric components, bearings, key parts, hydraulic parts are from international famous brand manufacturers.

Parameters:

Model			unit	CKG160
Worktable diameter			mm	1250/1400
Max. turning diameter			mm	1600
Max. weight of work piece			t.	8
Max. height of work piece			mm	1200/1600
Variable speed stage of worktable			2 gears + stepless
Rotating range of worktable			r/min	2-315
Max. cutting force of worktable			KN	25
Max. torque of worktable			Nm	16000/25000
Vertical tool post horizontal guide way pair			Sliding and rolling compound
Vertical tool post	T-type ram	Horizontal travel(X)	mm	-20---980
		Vertical travel	mm	800/1000
		Tool carrier type	Electric tool carrier with 4/5/6 station
	Square ram	Guide way pair	Sliding and rolling compound
		Horizontal stroke(X)	mm	-20---980
		Vertical stroke(Z)	mm	1000/1250
		Tool number in magazine	Pcs	4----12
CNC controller			SIEMENS/FANUC
Main electric motor power			KW	AC:28/DC:55
Crossbeam stroke			mm	850/1200
Crossbeam grading positioning number				6/7
Crossbeam grading positioning pitch			mm	150
Total power of machine			KW	60
Total weight of machine tool			t.	27
