CK5126E CNC Vertical Lathe

CK5126E CNC Vertical Lathe

Description

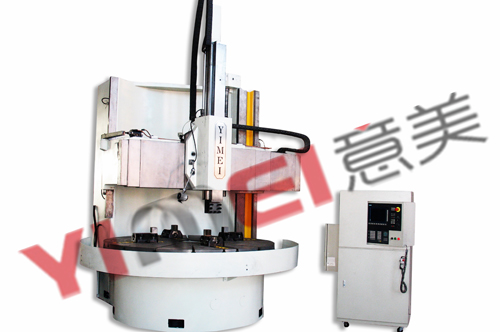

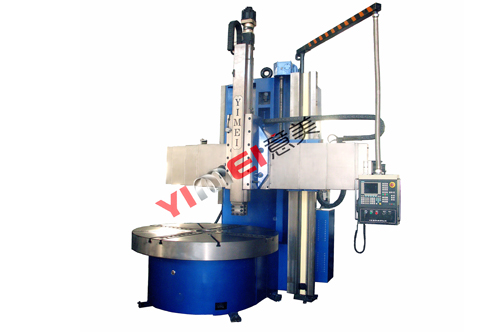

Single column CNC vertical lathe not only has common turning function but also can cut with constant linear velocity and threading. This single column CNC vertical lathe is mainly used for machining large and heavy-duty workpiece, such as coarse and fine machining processing of the inner and outer cylinder, end face, inner and outer conical surface, cylinder, cone hole, grooving, drilling, reaming, reaming on different kinds of disc, wheel and set workpiece etc.

Features of Vertical Lathe

1. Main drive can choose Grade 16 machinery variable speed, which will improve the maximum torque output and reduce the stress of the main transmission gear. Vertical lathe can adapt to the overloaded power cutting. Vertical tool rest optional five-angle tool or party knife sets.
2. Crossbeam and T Ram (optional square ram) are quenched and sticking with wearable band.
3. Standard configuration 16grade mechanical transmission, five station tool carrier or square tool carrier
4. The electrics components of the vertical lathe adopt with ultra-high quality components, CNC equipment using Siemens 808, the system can be equipped with other systems according to the needs of user, high-precision gear, grinding gear are featured with low noise and stable operation when high speed rotation.
5. There are optional configuration including rolling working platform, Germany Mecano button station, heightening lathe and prolonging ram and square ram etc. With the completely accessories configuration, users only need to prepare the cutting tool which can be used immediately.
6. Perfect after-sales service system to get rid of worries for you.

Specifications of Single Column CNC Vertical Lathe

Term Unit CK5126E
Max. turning diameter mm 2600
Worktable diameter mm 2250
Max. height of work piece mm 1600/2000
Max. weight of work piece t. 10
Rotating range of worktable r/min 2-63
Mechanical stage number of variable speed 16 steps
Max. cutting force of tool post N 25000/32000
Max. torque of worktable KN 45000
Horizontal travel of tool post mm 1500
Vertical travel of tool post mm 1000/800
Tool carrier station form Electric tool carrier with five station/square tool carrier
Crossbeam travel mm 1250/1650
Tool post fast moving speed mm 6000
Crossbeam moving speed mm/min 440
Sectional dimension of tool bar mm 32×32/40×50
Main electric motor power KW 37
Positioning accuracy mm 0.03
Repositioning accuracy mm 0.015
Machining accuracy IT7
Weight of machine tool t. 23/25
