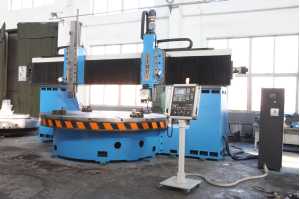

CK5240 CNC Vertical Lathe
Description of China Vertical Lathe Machine
As a CNC vertical lathe machine manufacturer, LANDYTK® Machine researched and developed this China vertical lathe machine independently. With the adoption of advanced fittings from home and abroad, our vertical lathe machine has the characters of strong cutting, overweight load workbench, high dynamic and static precision, safe and reliable performance, long life and high efficiency.
Features of China Vertical Lathe Machine
1. To realize large torque with thread cutting and constant linear turning function, the worktable uses 2 or 4 gear mechanical + AC variable frequency or DC stepless speed regulating.
2. To ensure its high reliability and perfect distribution process, this independent electric cabinet is equipped with air conditioning for refrigerating and high quality electric parts.
3. With the adoption of high-precision gear box (grade 6) and spiral bevel gear (grade 6), this machine has low noise and high accuracy rotation function.
4. To guarantee its long life and durability, our high quality castings of China vertical lathe machines are treated by artificial thermal aging treatment and the crossbeam guides adopt supersonic frequency process.
5. It is drove by DC motor through level 2 spindle speed change mechanism. As a CNC vertical lathe machine manufacturer, our company also offers you servo spindle motor or inverter duty AC motor according to your needs.
6. The following functions of China vertical lathe machines are optional: grating closed-loop imported bearing; lengthen ram and cooling oil.etc.
Parameters of China Vertical Lathe Machine
Fixed beam CNC vertical lathe
|
Unit
|
CK5240
|
Max. turning diameter
|
mm
|
4000
|
Worktable diameter
|
mm
|
3150/3600
|
Max. height of work piece
|
mm
|
1000
|
Max. weight of work piece
|
t.
|
16/32
|
Max torque of worktable
|
Nm
|
663/80
|
Variable speed stage of worktable
|
|
4/2
|
Variable speed range of worktable
|
r/min
|
1-63
|
Max cutting force of right tool post
|
mm
|
35
|
Max cutting force of left tool post
|
mm
|
30
|
Servo feeding range
|
mm
|
0.1-2000
|
Horizontal travel of tool post
|
mm
|
2250
|
Vertical travel of tool post
|
mm
|
1000
|
Feeding stage of left tool post
|
|
18
|
Fast moving speed of right tool post
|
mm/min
|
6000
|
Max swivel angle of tool post
|
|
+-30
|
Positioning accuracy
|
mm
|
0.03
|
Repeatability positioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
|
IT7
|
Main electric motor power
|
KW
|
55/75
|
Guide way form of worktable
|
Static pressure
|
Weight of machine(about)
|
t.
|
35/45
|
