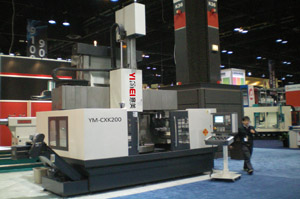

CXK200 CNC Vertical Lathe

CXK200 CNC Vertical Lathe

Description

Compared with traditional CNC vertical lathe, our China CNC vertical compound center has more functions like turning, milling, drilling, boring and grinding for one time clamping. If being equipped with double pendulum head, our machine can produce more complicated surfaces like vanes. It has X Y Z three axes, and it can be added up to five linkage axis. It is widely used in military project, aerospace, shipbuilding, etc. As a supplier of turning and milling center, our company offers you the products with the best quality.

Features of China CNC Vertical Compound Center

1. The main components and main transmission have high thermal stability because of its thermal symmetrical structure.
2. The main shaft of worktable adopts high precise double row cylindrical roller.
3. Worktable has the functions of precision indexing, turning and milling feedings.
4. The ram of China CNC vertical compound center uses high precision ball screw transmission, and the machine is equipped with ATC auto turning. The milling tool magazine has tool station with 12-20 optional.
5. As a supplier of turning and milling center, we offer all of the castings that treated by artificial thermal aging treatment.
6. The system of China CNC vertical compound center adopts Siemens 840DSL system (other systems are optional). Besides that, the servo motor and servo drive all adopt Siemens products.
7. All of the electric components, bearings, key parts, and hydraulic parts are from international famous brand manufacturers.

Parameters:

No. Vertical turning and milling center Unit CXK200
1 Worktable diameter mm 1800
2 Max. Turning diameter mm 2000
3 Max. Working height mm 1600
4 Max.weight of workpiece t 8
5 Main motor KW 28
6 Worktable rotation while turning rpm 1-250
7 Worktable rotation while milling (C axis) rpm 0-2
8 Max. Torque of worktable nm 16000
9 Cutting section dimension of ram mm 280x280
10 Ram stroke(Z axis) mm 1250
11 Fast traverse speed of tool post (X. Z axis) mm/min 10000
12 Feeding speed of tool post(X. Z axis) mm/min 0.1-2000
13 Max.turning force KN 25
14 Rotation of milling axis rpm 5-2000
15 Moment of milling axis nm 600/800
16 Power of milling axis KW 18/28
17 Taper hole of milling axis iso BT50
18 Crossbeam stroke/grade mm 1200/7
19 Crossbeam fast traverse speed 6 mm/min 440
20 Tool number in ATC 24
21 Auxiliary turning tool magazine position 6
22 Positioning accuracy of X.Z.Y axis mm 0.01
23 Repeatability positioning accuracy of X.Z.Y axis mm 0.005
24 Positioning accuracy of C axis sec ±3"




26 CNC system Siemens828D sl
