CXK630

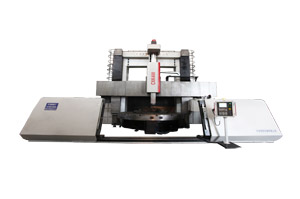

Description of China Turning and Milling Compound Center
Being equipped with three axes, this double column turning and milling center can perform turning, milling, boring, drilling and grinding except bottom surface for one clamping time. With the adoption of double layer magazine design, the upper layer has six turning cutters and the lower layer has 24 milling cutters. The turning cutter has strong rigidity with the adoption of hydraulic broach and fluted disc positioning.
Features of China Turning and Milling Compound Center
1. This double column turning and milling center can process more complex work piece if being equipped with double pendulum head and five axes.
2. High stability.
3. The beam has the functions of hierarchical positioning.
4. The worktable of double column turning and milling center has precision indexing and milling feeding function.
5. C axis positioning accuracy of China turning and milling compound center is up to ±6”
6. This center adopts Siemens 840DSL system. (Other systems are optional) besides that, our servo motor and servo both adopt Siemens products.
7. This machine tool of China turning and milling compound center is equipped with ATC auto magazine, six turning tools and 24 milling tools.
8. You can put out complete fitting configuration into use with the cutting tool and measuring tool prepared.
9. Our company offers you the best after sales service and two years warranty for products.
10. All of the electric components, bearings, key parts, and hydraulic parts are from international famous brand manufacturers.
Parameters of China Turning and Milling Compound Center
Vertical turning and milling center
|
unit
|
CXK630
|
Worktable diameter
|
mm
|
5000
|
Max. turning diameter
|
mm
|
6300
|
Max. machining height
|
mm
|
3150
|
Max. weight of workpiece
|
t
|
50
|
Main motor power
|
KW
|
90
|
Worktable speed while turning
|
r/min
|
40
|
Worktable speed while milling (C axis)
|
r/min
|
0-2
|
Max. torque of worktable
|
Nm
|
100
|
Sectional dimension of ram
|
mm
|
280×280
|
Ram stroke (Z axis)
|
mm
|
1600
|
Rapid moving speed of tool post (X axis Z axis)
|
mm/min
|
6000
|
Feeding speed of tool post
|
mm/min
|
0.1-2000
|
Max turning force (L/R)
|
KN
|
35/40
|
Milling axis rotary speed
|
r/m
|
5-2000
|
Milling axis torque
|
nm
|
800
|
Milling axis power
|
KW
|
28
|
Taper hole of milling axis
|
iso
|
BT50
|
Crossbeam stroke/grade
|
mm
|
2700
|
Crossbeam rapid moving speed
|
mm/min
|
350
|
No. of milling cutter in magazine
|
|
24
|
Auxiliary turning tool magazine
|
|
6
|
Positioning accuracy of X,Z,Y axis
|
mm
|
0.01
|
Repeatability positioning accuracy of X,Y,Z axis
|
mm
|
0.005
|
Positioning accuracy of C axis
|
mm
|
±6”
|
Repeatability positioning accuracy of C axis
|
mm
|
±3”
|
CNC system
|
Siemens 828DSL
|
