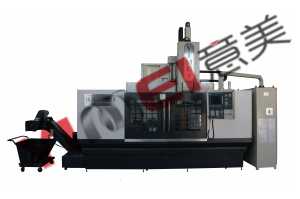

Description of China Single Column Vertical Lathe

With the adoption of advanced technology, CAD advanced design method and good static and dynamic rigidity; our CNC vertical lathe with single column can be operated safely and has long service and good efficiency. This China single column vertical lathe is mainly used to process materials like ferrous metal, nonferrous metal and part non-metal int. and ext. this machine can carry out the following steps like cylinder turning, taping, curving or inch any kinds of complex swiveling surface. Max. Turning diameter of the machine is 1600mm.

Advantages of China Single Column Vertical Lathe

1. With the adoption of high quality casting iron, the super rigid machine has big machining capacities, stable structure and high machining efficiency.
2. Manual fine scraping (high precision).
3. Working table of CNC vertical lathe with single column adopts hydro-static guide way.
4. Its gear is quenched, so it makes little noise.

Features of China Single Column Vertical Lathe

1. The square ram of CNC vertical lathe with single column is equipped with four-station electric tool carrier. This machine has professional design, mature technology and reliable quality.
2. The surface of crossbeam and T-type ram guide way are quenched by supersonic frequency (>HRC50). The square ram’s material is QT600. The sliding surface is sticking with wearable band, which is lasting and durable.
3. The independent electric cabinet of China single column vertical lathe is equipped with air conditioning. The vibration has no influence on it and it is easy to maintain.
4. Four mechanical gears for transmission. The CNC vertical lathe with single column also has variable frequency motor with stepless speed, constant power and large torque.
5. The completed configuration of the CNC vertical lathe with single column like bearings, key parts and hydraulic parts are all from international famous brand manufacturers.
6. The following spare parts of China single column vertical lathe are optional: German Mecano button station, cross flow static pressure guide, semi-closed protection, chip conveyor, trolley, oil temperature cooling refrigerator, hydraulic station, etc.

Parameters of China Single Column Vertical Lathe

Term Unit CK5116E
Max. turning diameter mm 1600
Worktable diameter mm 1400
Max. height of workpiece mm 1200/1400/1600
Rotating range of worktable r/min 0.5-200
Mechanical stage number of variable speed Four gears +stepless
Max. cutting force of tool post KN 25000/30000
Max. torque of worktable KN 32000
Horizontal travel of tool post mm 1020
Vertical travel of tool post mm 800
Tool carrier station form Electric tool carrier with four station/square tool carrier
Crossbeam travel mm 850/1000/1200
Tool post fast moving speed mm 6000
Crossbeam moving speed mm/min 440
Sectional dimension of tool bar mm 32×32/40×40
Main electric motor power KW 45
Positioning accuracy mm 0.03
Repositioning accuracy mm 0.015
Machining accuracy IT7
Weight of machine tool t. 12.6/13.5/14.4
