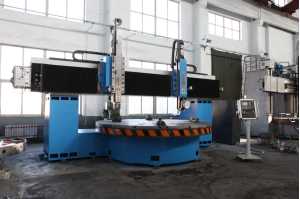

CK5231 CNC Vertical Lathe

CK5231 CNC Vertical Lathe

Description of Double Column Vertical Lathe Machine

This vertical lathe is designed and built to process modern machining like high speed cutting tools and carbide cutters made of ferrous, non-ferrous and other materials. To realize the functions of large torque with thread cutting and constant linear turning, our worktable daopts 2 or 4 gear mechanical+ AC variable frequency or DC stepless speed regulating.

Features of Double Column Vertical Lathe Machine

1. This machine tool is mainly used for processing discoid components, like machine cylindrical surface, conical surface, circular surface and combination complicated surfaces, etc.
2. With the help of independent R&D production, modular design, fixed beam structure, our machine has high rigidity and precision, stable running and high cost performance, etc.
3. The lubrication pump can lubricate the guide way of crossbeam and ram automatically. The guide way of work table is divided into static pressure guide and dynamic pressure guide
4. Siemens 828D system (optional Fanuc OI-TD) with 100% manual operation.
5. Being equipped with air conditioning, the independent electric cabinet of double column vertical lathe machine can cool itself down automatically. To ensure its high reliability, our machine has high quality electric parts and perfect distribution process.
6. To ensure its low noise and high accurate rotation, our machine adopts high-precision gear box (grade 6) and spiral bevel gear (grade 6).
7. THK Japan, high-precision ball screw and imported bearing support.
8. High quality castings of double column vertical lathe machine are treated by artificial thermal aging treatment. Crossbeam guide adopts supersonic frequency process, which guarantees its long life and durable performance.
9. The following function is optional: grating closed-loop imported bearing, length ram and cooling oil, etc.
10. To ensure its high stability, excellent quality and reliability, we adopt perfect processing and assemble process.

Parameters of Double Column Vertical Lathe Machine

Fixed beam CNC vertical lathe Unit CK5231
Max. turning diameter mm 3200
Worktable diameter mm 2830
Max. height of work piece mm 1000
Max. weight of work piece t. 16
Max torque of worktable Nm 63000
Variable speed stage of worktable
4
Variable speed range of worktable r/min 1-63
Max cutting force of right tool post mm 35
Max cutting force of left tool post mm 30
Servo feeding range mm 0.1-2000
Horizontal travel of tool post mm 1850
Vertical travel of tool post mm 1000
Feeding stage of left tool post
18
Fast moving speed of right tool post mm/min 6000
Max swivel angle of tool post
+-30
Positioning accuracy mm 0.03
Repeatability positioning accuracy mm 0.015
Machining accuracy
IT7
Main electric motor power KW 55
Guide way form of worktable Static pressure
Weight of machine(about) t. 29
