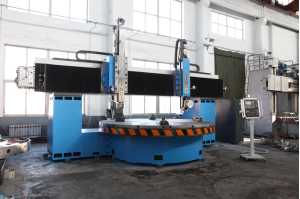

CK5225 CNC Vertical Lathe
Description of Fixed Beam Vertical Lathe Machine
As a super rigid machine, our double column CNC vertical lathe has big machining capacities and high machining efficiency. Being equipped with two vertical tool heads, our machine has high precision. Together with electromagnetic valves, the electric encoder is integrated with the gear box. Gears are made of 40 Cr steel, and precision ground ensure its high precision and low machine noise.
Features of Fixed Beam Vertical Lathe Machine
1. This machine tool of double column CNC vertical lathe is mainly used for processing discoid spare parts, like machine cylindrical surface, conical surface, circular surface and combination complicated surfaces, etc.
2. With the adoption of independent R&D production, modular design, fixed beam structure, our double column CNC vertical lathe has the characters of high rigidity and precision, stable running and high cost performance, etc.
3. Worktable uses 2 or 4 gear mechanical + AC variable frequency or DC stepless speed regulating to realize large torque as well as thread cutting and constant linear turning function.
4. The guide way of crossbeam and ram of fixed beam vertical lathe machine are lubricated by lubricating pump automatically. The guide way of work table is divided into static and dynamic pressure guide.
5. Siemens 828D system (Fanuc OI-TD is optional) with 100% manual operation.
6. Our double column CNC vertical lathe has reliable performance because of its independent electric cabinet with air conditioning for refrigerating, high quality electric parts and perfect distribution process.
7. The high-precision gear box (grade 6) and spiral bevel gear (grade 6) guarantee its low noise and high accurate rotation.
8. High-precision ball screw and imported bearing are all imported from famous brand manufacturers.
9. High quality castings of fixed beam vertical lathe machine are treated by artificial thermal aging treatment. Crossbeam guide adopts supersonic frequency process, which guarantees its long life and durable performance.
10. The following function of double column CNC vertical lathe is optional: grating closed-loop imported bearing, length ram and cooling oil, etc.
11. To ensure its high stability, excellent quality and reliability, we adopt perfect processing and assemble process.
Parameters of Fixed Beam Vertical Lathe Machine
Fixed beam CNC vertical lathe
|
Unit
|
CK5225
|
Max. turning diameter
|
mm
|
2500
|
Worktable diameter
|
mm
|
2250
|
Max. height of work piece
|
mm
|
1000
|
Max. weight of work piece
|
t.
|
16
|
Max torque of worktable
|
Nm
|
63000
|
Variable speed stage of worktable
|
|
4
|
Variable speed range of worktable
|
r/min
|
1-63
|
Max cutting force of right tool post
|
mm
|
35
|
Max cutting force of left tool post
|
mm
|
30
|
Servo feeding range
|
mm
|
0.1-2000
|
Horizontal travel of tool post
|
mm
|
1500
|
Vertical travel of tool post
|
mm
|
1000
|
Feeding stage of left tool post
|
|
18
|
Fast moving speed of right tool post
|
mm/min
|
6000
|
Max swivel angle of tool post
|
|
±30
|
Positioning accuracy
|
mm
|
0.03
|
Repeatability positioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
|
IT7
|
Main electric motor power
|
KW
|
55
|
Guide way form of worktable
|
Static pressure
|
Weight of machine(about)
|
t.
|
25
|
