Heavy-Duty Double Column CNC Vertical Lathe(CJ Series)

Heavy-Duty Double Column CNC Vertical Lathe(CJ Series)

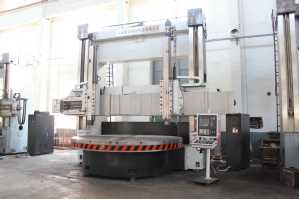

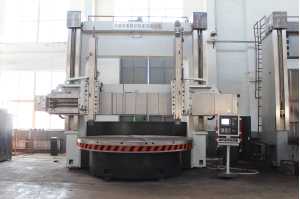

Description of Heavy-Duty CNC Vertical Lathe

This series of double column vertical turning lathe are divided into CNC type and manual type. They have the characters of economic, useful, stable, reasonable price and high cost performance. The machine tool of heavy-duty CNC vertical lathe is made of large work table, big base, large bearing with large capacity and superb stability.
The range of work piece weight is from 32 ton to 40 ton. The left tool holder of double column vertical turning lathe is conventional and the right is CNC control with the functions of threading and constant linear turning.


Parameters of Heavy-Duty CNC Vertical Lathe

Term Unit CJK5240 CJK5250
Max. turning diameter mm 4000 5000
Worktable diameter mm 3600 4500
Max. height of work piece mm 2500/3150 2500/3150
Max. weight of work piece t. 32 32
Max. cutting force of right tool post KN 35 35
Max. cutting force of left tool post KN 30 30
Max. total cutting force KN 65 65
Max. torque of worktable KN 80 80
Stage number of variable speed of worktable Two gears+stepless
Variable speed range of worktable r/min 0.5-50 0.5-40
Feeding range of tool post mm/min Left 18/right stepless Left 18/right stepless
Horizontal travel of tool post mm 2350 2800
Vertical travel of tool post mm 1300/1600 1300/1600
Crossbeam moving speed mm/min 350 350
Tool post rapid moving speed mm/min Left 1560 Right 6000 Left 1560 Right 6000
Max. swivel angle of worktable +30 ±30
Main electric motor power KW DC75 DC75
Overall size mm 5800×5000×4600 6800×5600×4600
Weight of worktable t. 62/65 72/75
