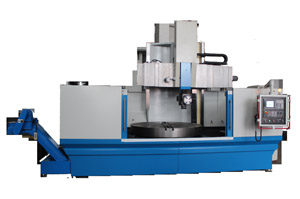

CK5123E CNC Vertical Lathe

Advantages of Professional Type CNC Vertical Lathe

1. In order to make oil film seal up properly and ensure its steady operation, the table base is processed by annealing treatment and turning before the guide face and table junction face are treated with manual scraping.
2. The PLC system of vertical lathe machine with single column is made by Japanese Omron. The professional type CNC vertical lathe performs well at program control of electrical devices, diagnosis of fault locations and remote diagnosis and maintenance.
3. The turbines in drop box and feeding box are made of copper alloy material, which guarantee the machine is anti-wear and long life service.

Features of Professional Type CNC Vertical Lathe

1. The worktable has functions like constant linear speeding turning, cutting thread and waterproof.
2. The surface of crossbeam and T-type ram guideway are quenched by supersonic frequency (>HRC50). The sliding surface of vertical lathe machine with single column is sticking with a wearable band, which makes it more lasting and durable. The square ram’s material is QT600.
3. The independent electric cabinet is equipped with air conditioning for refrigerating: free effect from vibration and convenient to maintain.
4. The crossbeam of professional type CNC vertical lathe is protected by white steel, and all of the lubrication parts are lubricated by automatic lubricating pump which has independent hydraulic station.
5. It has the characters of four gears mechanical transmission + variable frequency motor step less speed, constant power and large torque.
6. All the electric components, bearings, key parts, hydraulic parts of vertical lathe machine with single column are from international famous brand manufacturers with completed configuration.
7. The following functions of professional type CNC vertical lathe are optional: German Mecano button station, cross flow static pressure guide, semi-closed protection, chip conveyor, trolley, oil temperature cooling refrigerator, hydraulic station, etc.

Parameters of Vertical Lathe Machine with Single Column

Term	Unit	CK5123E
Max. turning diameter	mm	2300
Worktable diameter	mm	2000
Max. height of workpiece	mm	1400/1600
Max. weight workpiece	t.	8
Rotating range of worktable	r/min	0.5-100
Mechanical stage number of variable speed	Four gears +stepless
Max. cutting force of tool post	N	25000/30000
Max. torque of worktable	KN	40000
Horizontal travel of tool post	mm	1400
Vertical travel of tool post	mm	1000/8000
Tool carrier station form	Electric tool carrier with four station/square tool carrier
Crossbeam travel	mm	1050/1250
Tool post fast moving speed	mm	6000
Crossbeam moving speed	mm/min	440
Sectional dimension of tool bar	mm	32×32/40×40
Main electric motor power	kw	45
Positioning accuracy	mm	0.03
Repositioning accuracy	mm	0.015
Machining accuracy	IT7
Weight of machine tool	t.	18/19
