CXK400

CXK400

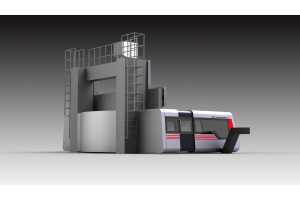

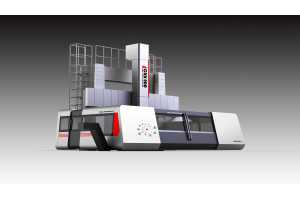

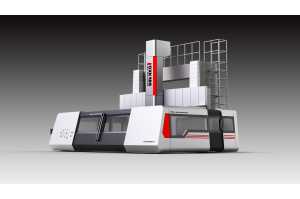

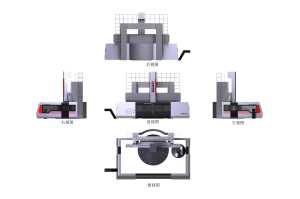

Description of Turning and Milling Machining Center

This series of CNC machining center adopts several advanced designs like advanced computer 3D design, modular design and finite element analysis. It is equipped with advanced machine tool equipment and detection device, which fully consider the processing demand of heavy cutting, high efficiency and high precision.
Being equipped with automatic measurement and machine tool setting device, our CNC machining center can finish processes of turning, milling, boring, drilling and grinding which can improve processing quality and lower product cost.
This series of turning and milling machining center is mainly used for the large rotary spare parts processing like wheels, Motor shell, pump, and valve as well as the large rotary spare parts processing with high precision like paper making, ship building, wind power, nuclear power and military.

Features of CNC Machining Center

1. As self-developed products, our turning and milling machining center has the characters of multifunction, high precision and high efficiency.
2. CXK400 have 3 axes which can perform turning, milling, boring, drilling, and grinding except bottom surface after clamping one time. It can be added up to 5 axes which can process more complex work piece with equipment of double pendulum head.
3. Because of the thermal symmetric construction, our main basic components and the main transmission of CNC machining center have high stability.
4. The worktable of turning and milling machining center has precision indexing and milling feeding function.
5. C axis positioning accuracy is up to ±6”.
6. Its positioning accuracy is 0.01mm with the adoption of grating closed-loop feedback control.
7. The machine tool is equipped with ATC auto magazine, six turning tools and 24 milling tools.
8. Its control system of turning and milling machining center adopts Siemens 840 DSL system.
9. All of the castings of CNC machining center are treated by artificial thermal aging treatment.
10. All of the electric components, bearings, key parts, and hydraulic parts are from international famous brand manufacturers.

Parameters of CNC Machining Center

Vertical turning and milling center unit CXK400
Worktable diameter mm 3600
Max. turning diameter mm 4000
Max. machining height mm 2500
Max. weight of workpiece t. 32
Main motor power KW 75
Worktable speed while turning r/min 50
Worktable speed while milling (C axis) r/min 0-3
Max. torque of worktable Nm 80000
Sectional dimension of ram mm 280×280
Ram stroke (Z axis) mm 1250
Rapid moving speed of tool post (X axis Z axis) mm/min 6000
Feeding speed of tool post mm/min 0.1-2000
Max turning force (L/R) KN 35/40
Milling axis rotary speed r/m 5-2000
Milling axis torque nm 800
Milling axis power KW 28
Taper hole of milling axis iso BT50
Crossbeam stroke/grade mm 2100
Crossbeam rapid moving speed mm/min 350
No. of milling cutter in magazine
24
Auxiliary turning tool magazine
6
Positioning accuracy of X,Z,Y axis mm 0.01
Repeatability positioning accuracy of X,Y,Z axis mm 0.005
Positioning accuracy of C axis mm ±6”
Repeatability positioning accuracy of C axis mm ±3”
CNC system Siemens 828DSL
