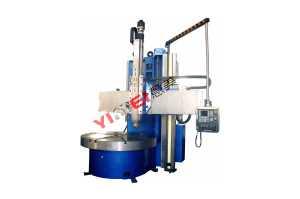

CK5120E

Description of Vertical Lathe Machines

Based on the experience for design and manufacturing of small and large vertical lathes, our small CNC vertical turret lathe is a combination of modern mechanics, electrics and hydraulics. To meet modern machining requirements, this machine is equipped with high speed cutting tools, carbide cutters for rough & finish machining of work pieces of cast iron, alloy steel and other materials.

Features of Vertical Lathe Machines

1. This small CNC vertical turret lathe integrates suspended button, electric cabinet and lathe together.
2. Its crossbeam and T ram (square ram is optional) are quenched and stuck with wearable band.
3. Standard configuration of vertical lathe machines includes 16 grade mechanical transmission and five station tool carrier (square tool carrier is optional).
4. Siemens 808 system (other systems are optional)
5. Closed protection for crossbeam and auto lubrication for each lubricated parts.
6. Our vertical lathe machines carries out JB/T9934.2-1999 CNC vertical lathe technical condition and JB/T9934.1-1999 CNC vertical lathe precision inspection.
7. Optional functions for the small CNC vertical turret lathe: variable frequency step less speed, electric tool holder and heightened bed, etc.

Parameters

Term	Unit	CK5120E
Max. turning diameter of worktable	mm	2000
Worktable diameter	mm	1800
Max. height of work piece	mm	1400/1600
Max. weight of work piece	t.	8
Rotating range of worktable	r/min	3.2-100
Mechanical stage number of variable speed		16
Max. cutting force of vertical tool post	KN	30 square ram/25 electric tool carrier
Max. torque of worktable	Nm	32000
Horizontal travel of vertical tool post	mm	1200
Vertical travel of vertical tool post	mm	Square ram1000/ five pentagon tool carrier800/ electric tool carrier800
Tool station carrier form	Square tool carrier/electric tool carrier with 5 station
Crossbeam travel	mm	1000/1250
Feeding speed of tool post	mm/min	0.1-500
Tool post rapid moving speed	mm/min	6000
Crossbeam lifting speed	mm/min	440
Sectional dimension of tool bar	mm	40×40/32×32
Main electric motor power	KW	30
Positioning accuracy		0.03
Repeatability positioning accuracy		0.015
Machining accuracy	IT7
Machine weight	t.	15.2/16.2
