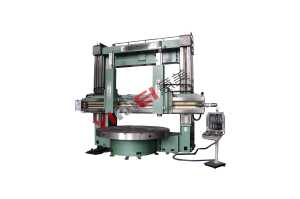

CKQ5240E CNC Vertical Lathe

Features of Numerical Control Lathe Machine,

1. With the adoption of modularization design, this series is mature and reliable.
2. It has 100% full manual operation functions.
3. To realize rotary with large torque, turning function and constant line rate, this working platform adopts four-step machinery+ big power DC motor stepless speed control (AC frequency conversion can be selected).
4. As a vertical lathe machine manufacturer, our company adopts heat aging to handle excellent casting (HT 300).
5. The beam guide of numerical control lathe machine is handled by supersonic frequency induction hardening and it adopts rolling-sliding compound type.
6. The vertical tool holder utilizes square type ram (QT600-3), which can realize heavy cutting. The sliding surface uses sticking plastic treatment which has durable performance.
7. With the adoption of automatic lubrication pump, the beam guide, ram guide and vertical column guide can lubricate themselves automatically.
8. The ball screw of numerical control lathe machine adopts Nanjing process or Taiwan HIWIN P3 level high precision while the lead screw uses imported bearing (Germany INA) for supporting.
9. The guide can be divided into two types static pressure and purely static pressure. The bearing of dynamic and static pressure is 10 ton; the purely static pressure adopts constant current for oil supply with 16-20 tons of bearing.
10. As a vertical lathe machine manufacturer, our company can offer independent hydraulic station of numerical control lathe machine that helps adjustment, repair and maintenance.
11. The precision performs JB/T9934.1-1999 precision test of CNC vertical lathe as well as JB/T9934.2-1999 technical condition of CNC vertical lathe.
12. High-standard processing and assembly process ensure the perfect product quality.
13. High-standard processing and assembly process ensure the perfect product quality.
14. High-precision variable speed gear (Grade 6) and high-precision spiral bevel gear (Grade 6 gear grading) are featured with low noise and high rotary precision.
15. As a vertical lathe machine manufacturer, our company develops this whole process independently.
16. Optional functions of numerical control lathe machine: constant current and static pressure, grating and closed loop, heightening the machine tool and ram and function of cutting thread etc.

Parameters of Numerical Control Lathe Machine

Term	Unit	CKQ5240
Max. turning diameter	mm	4000
Worktable diameter	mm	3150
Max. height of work piece	mm	2000/2500/3150
Max. weight of work piece	t.	16
Max. cutting force of right tool post	KN	35
Max. cutting force of left tool post	KN	30
Max. torque of worktable	KN	63
Stage number of variable speed of worktable	Four gears+stepless
Variable speed range of worktable	r/min	0.5-50
Feeding range	mm/min	0.1-2000
Horizontal travel of tool post	mm	2250
Vertical travel of tool post	mm	1000/1250/1600
Crossbeam moving speed	mm/min	350
Tool post rapid moving speed	mm/min	6000
Max. swivel angle of worktable	。	+/-30
Positioning accuracy	mm	0.03
Repeatability positioning accuracy	mm	0.015
Machining accuracy	IT7
Main electric motor power	KW	55
Guide way type of worktable	mm	static pressure
Weight of worktable	t.	45/48/50
