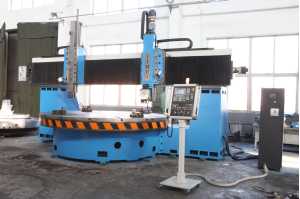

CK5263 CNC Vertical Lathe
Description of China Vertical Lathe
With the adoption of resin sand casting process and artificial heat processing, our double column vertical lathe has strong durability.
Features of China Vertical Lathe
1. This machine is suitable for processing discoid components like cylindrical surface, conical surface, circular surface and combination complicated surfaces, etc.
2. With the adoption of fixed-beam structure, our China vertical lathe has high rigidity and high precision, stable running and high cost performance.
3. To realize large torque with thread cutting and constant linear turning function, our worktable of double column vertical lathe uses 2or 4 gear mechanical + AC variable frequency or DC stepless speed regulating.
4. The lubricating pump can lubricate the guide way of crossbeam and ram automatically.
5. Siemens 828D system (optional Fanuc OI-TD) with 100% manual operation.
6. To ensure its high reliability, this independent electric cabinet of China vertical lathe is equipped with air conditioning for refrigerating, high quality electric parts and perfect distribution process.
7. With the adoption of high-precision gear box (grade 6) and spiral bevel gear (grade 6), our double column vertical lathe has low noise and high accuracy rotation function.
8. THK Japan, high-precision ball screw and imported bearing support
9. All of its castings of China vertical lathe are treated by artificial thermal aging treatment and its crossbeam guide adopts supersonic frequency process.
10. The following functions of double column vertical lathe are optional: grating closed-loop imported bearing; lengthen ram and cooling oil.etc.
11. All of the perfect processing and assemble process guarantee the stable and reliable product quality.
Parameters of China Vertical Lathe
Fixed beam CNC vertical lathe
|
Unit
|
CK5263
|
Max. turning diameter
|
mm
|
6300
|
Worktable diameter
|
mm
|
4500/5000
|
Max. height of work piece
|
mm
|
1200/1600
|
Max. weight of work piece
|
t.
|
32/50/80/100
|
Max torque of worktable
|
Nm
|
80/100/250
|
Variable speed stage of worktable
|
|
2
|
Variable speed range of worktable
|
r/min
|
0.5-50
|
Max cutting force of right tool post
|
mm
|
35/50/80
|
Max cutting force of left tool post
|
mm
|
30/40/70
|
Servo feeding range
|
mm
|
0.1-2000
|
Horizontal travel of tool post
|
mm
|
3500
|
Vertical travel of tool post
|
mm
|
1250/1600
|
Feeding stage of left tool post
|
|
18
|
Fast moving speed of right tool post
|
mm/min
|
6000
|
Max swivel angle of tool post
|
|
+-30
|
Positioning accuracy
|
mm
|
0.03
|
Repeatability positioning accuracy
|
mm
|
0.015
|
Machining accuracy
|
|
IT7
|
Main electric motor power
|
KW
|
75/90/110
|
Guide way form of worktable
|
Static pressure
|
Weight of machine(about)
|
t.
|
60/70/120
|
